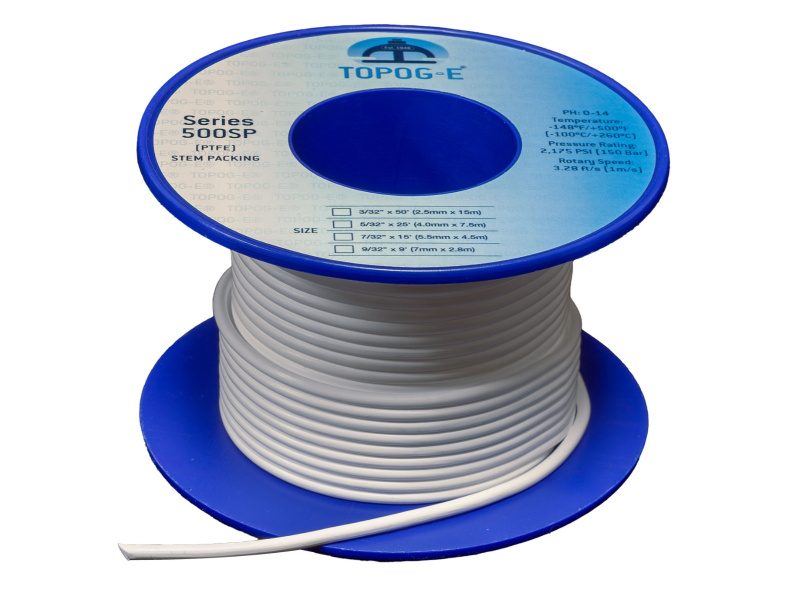

PTFE Stem Packing — Universal Valve Packing Series 500SP

PTFE Stem Packing is a high performance, universal valve packing constructed from a 100% unsintered PTFE core with a special PTFE tape covering. This double construction combines the versatility of an extruded malleable core with the additional strength and extrusion resistance of the outer tape layer, resulting in a low friction, near universally chemical resistant packing suitable for virtually all chemicals and media. It is FDA compliant and has an unlimited shelf life with no age deterioration.

Supplied on a spool, PTFE Stem Packing provides both an instant packing and an instant gasket in one economical product. In valve applications, simply wrap the packing around the stem to fill the gland — no cut rings required — then tighten the gland follower and the PTFE moulds to form a tight, leak-free seal. A properly installed PTFE Stem Packing is guaranteed to last the life of the valve to which it is fitted. Not suitable for liquid or gaseous oxygen applications.

Key Features

• Double construction — 100% unsintered PTFE malleable core with PTFE tape covering
• Near universal chemical resistance across pH 0–14
• Low friction and extrusion resistant
• Will not harden or shrink in application
• No cut rings required — wrap around stem to fill gland and compress to seal
• Guaranteed to last the life of the valve when properly installed
• FDA compliant — suitable for food contact applications
• Unlimited shelf life with no age deterioration
• Temperature range –267.8°C to 260°C continuous

Typical Applications

• Static valve gland packing
• Universal gasketing applications
• Practically all chemical environments — except liquid or gaseous oxygen, molten alkali metals and elemental fluorine
• Food industry applications requiring FDA compliant sealing materials

Note: Do not combine maximum temperature and pressure simultaneously.

Available Types
