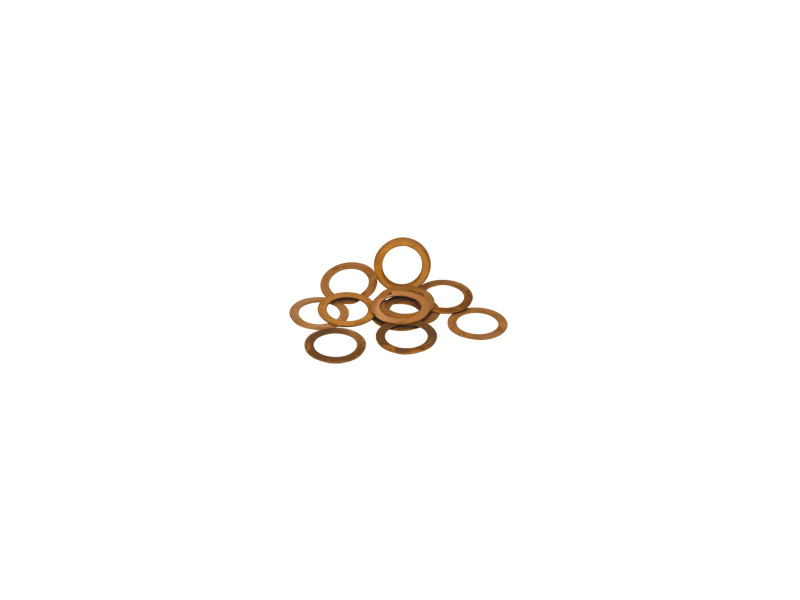

Name: 3/4" BSP Solid Copper Washer
Price: 0.29 GBP
Availability: InStock

British Standard Pipe Thread - Parallel (BSPP/BSPF) Inner			Threads			Tap
Nominal Size	Dash Size	Outer Dia. (mm)	Male Thread Dia. (mm)	Pitch (mm)	Threads per inch	Thread Dia. (mm)	Height (mm)	Drill Dia. (mm)
1/8"	02	9.728	8.566	0.907	28	9.147	0.581	8.7
1/4"	04	13.157	11.445	1.337	19	12.301	0.856	11.6
3/8"	06	16.662	14.95	1.337	19	15.806	0.856	15
1/2"	08	20.955	18.631	1.814	14	19.793	1.162	19
5/8"	10	22.911	20.587	1.814	14	21.749	1.162	20.75
3/4"	12	26.441	24.117	1.814	14	25.279	1.162	24.5
7/8"	14	30.201	27.877	1.814	14	29.039	1.162	28.5
1"	16	33.249	30.924	2.309	11	31.77	1.479	30.5
1 1/8"	18	37.897	34.939	2.309	11	36.418	1.479	35
1 1/4"	20	41.913	38.955	2.309	11	40.431	1.479	39
1 1/2"	24	47.803	44.845	2.309	11	46.324	1.479	45
2"	32	59.614	56.656	2.309	11	58.135	1.479	57
2 1/4"	36	65.754	62.796	2.309	11	64.273	1.479	63
2 1/2"	40	75.184	72.226	2.309	11	73.703	1.479	72.5
2 3/4"	44	80.054	77.096	2.309	11	80.055	1.479	79
3"	48	87.884	84.926	2.309	11	86.405	1.479	85.5
