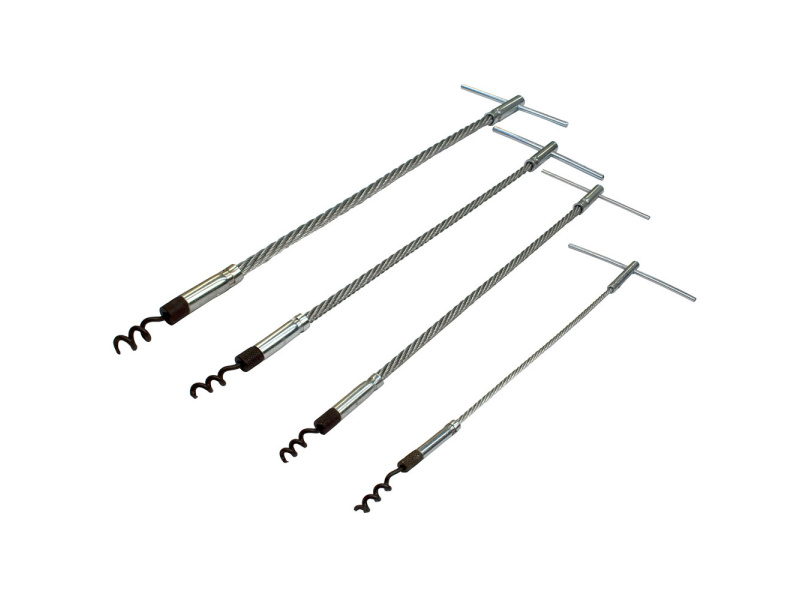

Gland Packing Extractors

Gland Packing Extractors

Excl. VAT: £10.82
Incl. VAT: £12.98
Product Code: TOOL-S050-
Quantity:

Gland Packing Extractors

Gland Packing Extractors from Vulcan Seals are flexible, purpose-built tools designed to facilitate the easy removal of old packing of any size. The long flexible shank allows access to glands in even the most awkward and hard-to-reach positions, making light work of what can otherwise be a time-consuming and difficult task.

The hardened and tempered steel screw end is engineered to give maximum penetration into the packing, ensuring a secure grip and clean extraction every time. Available in four sizes to cover a wide range of packing dimensions, from 1/8" (3.2mm) up to 3/4" (19mm) and beyond — and also available as a complete set of four.

Key Features

  • Flexible shank for easy access to awkward gland positions
  • Hardened and tempered steel screw end for maximum penetration
  • Suitable for removal of old packing of any size
  • Four sizes covering 1/8" (3.2mm) up to 3/4" (19mm) and upward
  • Available individually or as a set of four

Typical Applications

  • Removal of old or worn gland packing from pumps and valves
  • Maintenance of glands in confined or hard-to-reach positions
  • Industrial and engineering maintenance applications
  • Steam and hydraulic equipment servicing
  • General plant and machinery maintenance

Available Types

Size 1: 1/8" (3.2mm), 3/16" (5mm) and 1/4" (6.5mm) gland packing
Size 2: 5/16" (8mm) and 3/8" (9.5mm) gland packing
Size 3: 7/16" (11mm), 1/2" (12.5mm), 9/16" (14.5mm) and 5/8" (16mm) gland packing
Size 4: 3/4" (19mm) gland packing and upward
Set of 4: Sizes 1–4

Product Specifications

Size Gland Packing Range Length Shaft Diameter
Size 1 1/8" (3.2mm), 3/16" (5mm) and 1/4" (6.5mm) 205mm 4mm
Size 2 5/16" (8mm) and 3/8" (9.5mm) 275mm 5mm
Size 3 7/16" (11mm), 1/2" (12.5mm), 9/16" (14.5mm) and 5/8" (16mm) 350mm 6mm
Size 4 3/4" (19mm) and upward 415mm 8mm
Screw End Material Hardened and tempered steel
Available As Individual sizes or set of 4
